Machined Heavy Tungsten Alloy Screws 16.3-18.5 G/Cc

Product Categories
JINXING MATECH CO LTD
Contact Now

Machined Heavy Tungsten Alloy Screws 16.3-18.5 G/Cc

Brand Name : JINXING

Model Number : WNiFe WNiCu - Heavy Tungsten Alloy Screws

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 10 kg

Price : Negotiable

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 2000 kg per month

Delivery Time : 15-20 days

Packaging Details : plywood cases

Product Name : Heavy Tungsten Alloy Screws

Type : WNiFe/WNiCu

Density : 16.3-18.5 g/cc

Purity : >95% W

Tensile Strength : 710-1400 MPa

Elongation : <10%

Standard : ASTM B777-2010

Applications : spare parts

Contact Now

Standard WNiFe WNiCu Machined Heavy Tungsten Alloy Screws

Heavy Tungsten Alloy Screws is a kind of tungsten as the matrix alloy material (tungsten content is generally 80%~98%), and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. The density of high specific gravity tungsten alloy is up to 15.20~18.70g/cm3, also known as high specific gravity tungsten alloy or high density alloy material. Because tungsten alloys weigh more than twice as much as steel.



SPECIFICATIONS & CHEMICAL COMPOSITIONS  (NOMINAL)

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)		 16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)		 32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max		 770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)		 620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)		 5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

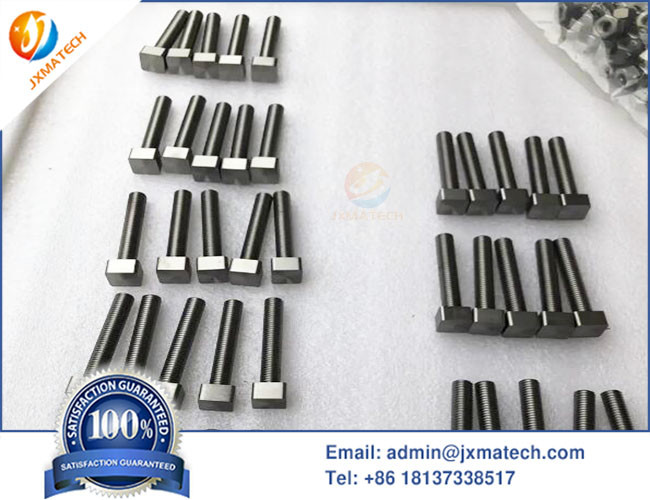

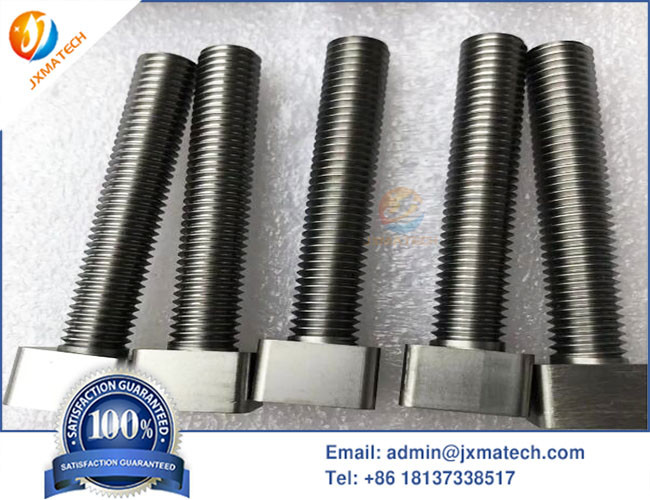

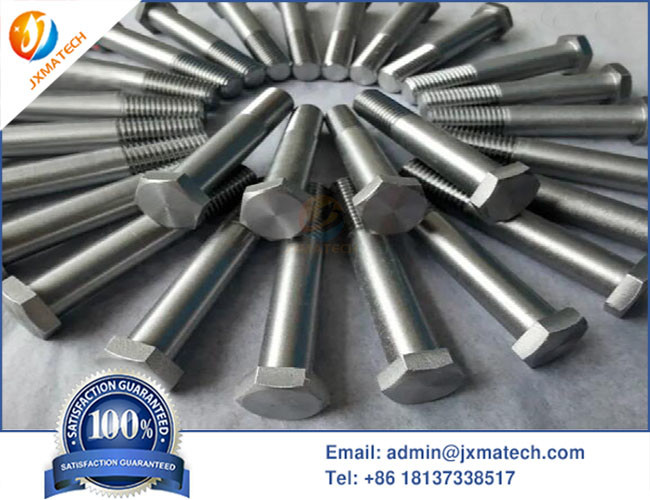

Machined Heavy Tungsten Alloy Screws Picture:

Machined Heavy Tungsten Alloy Screws 16.3-18.5 G/CcMachined Heavy Tungsten Alloy Screws 16.3-18.5 G/CcMachined Heavy Tungsten Alloy Screws 16.3-18.5 G/Cc

What is Heavy Tungsten Alloy Screws?

  1. Heavy tungsten alloy is mainly divided into nickel nickel iron, nickel nickel alloy, nickel copper, even tungsten alloy two series. In contrast, o - ni - fe alloy has good mechanical properties and plays an important role in various fields of national defense industry and national economy. It is a very important new military material in national defense industry and has been gradually extended to various civil industries.
  2. The tungsten content in tungsten alloys varies from 90% to 98%, which is responsible for their high density (16.5 to 19.00g/CC). Nickel, iron and/or copper are used as a metal binder base to hold the fragile tungsten particles together, making the tungsten alloy malleable and easy to work. Ferric nickel Nickel is the most commonly used additive in 7Ni: 3Fi or 8Ni: 2Fe by weight



Application of Heavy Tungsten Alloy Screws

  • High gravity tungsten alloys are used to make tool holders, especially boring bars.
  • High gravity tungsten alloy is used as the counterweight material for the high crankshaft of the small engine of forest chainsaw.
  • The electrodes of edM and electrochemical machine tools are also made of tungsten gold with high gravity
